| Brand Name : | Shelok |
| Model Number : | SLK-RD810 |
| Price : | USD+890~1000+Piece |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100+pieces+per month |
| Delivery Time : | 5-8 work days |

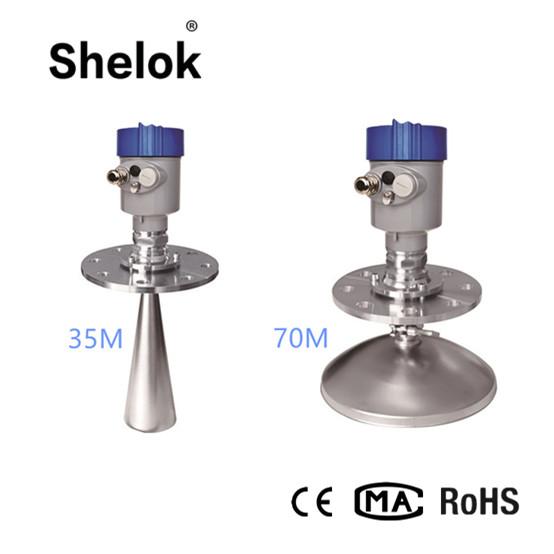

Description of articles and dust liquid radar level meter:
Radar level meter transmitter emits a very narrow microwave pulse, the pulse to the speed of light in the space, encountered the surface of the measured medium, part of its energy is reflected back, the same antenna to receive. The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the measured medium to calculate the distance from the antenna to the surface of the measured medium.Our this kind of radar level sensor can test Particles and dust level meter ,Widely used inCement plant, ash library, slag storage bin and so on and other industries.
| Model | NYRD805 | NYRD806 | NYRD807 | NYRD808 | NYRD809 | NYRD810 |
| Application | All kinds of corrosive liquid | Hight temperature ,pressure,slightly corrosive liquid | Hygienic liquid storage,Corrosive liquid container | Storage containers, process containers, strong dust, easy to crystallize | Solid particles, Powder | Solid material, Strong dust |
| Measuring Range | 10 meters | 30 meter | 20 meters | 70 meters | 35meters | 70 meters |
| Process Connection | Thread, Flange | Thread, Flange | Thread, Flange | Thread, Flange | Thread, Flange | Thread, Flange |
| Medium Temperature | -40°C ~ 130°C | -40°C~ 80°C, -40°C~ 130°C, -60°C~ 250°C, -60°C~ 400°C | -40°C ~ 80°C, -40°C ~ 150°C | -40°C~ 80°C, -40°C~ 130°C, -60°C~ 250°C, -60°C~ 400°C | -40°C ~ 80°C, -40°C ~ 130°C | -40°C ~ 80°C, -40°C ~ 130°C |
| Process Pressure | -0.1~0.3 MPa | -0.1 ~ 4.0 MPa | "-0.1 ~ 0.5MPa | "-0.1 ~ 4 MPa | -0.1 ~ 4.0MPa | -0.1 ~ 4.0MPa |
| Accuracy | ± 5mm | ± 3mm | ± 3mm | ± 15mm | ± 3mm | ± 3mm |
Particles and dust liquid radar level meter widely used in cement plant, ash library, slag storage bin and so on and other industries.
|
|
