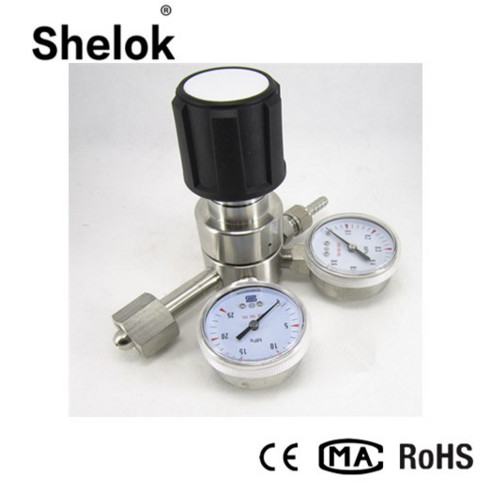

Description of two stage water pressure regulating valve:

This two stage pressure regulating valve is high pressure regulator with piston type pressure reducing structure, which is mainly applied for high input pressure demand, the maximum input pressure is 6000 psig.

Feature of two stage water pressure regulating valve:

Body: 316L
Seat: PCTFE, Vespel
Piston: 316L
O-rings: Viton

Specification of two stage water pressure regulating valve:

Max pressure range: 6000PSI
Output pressure: 0-3000PSI
Piston pressure reducing structure
Parent interface thread: NPT "1/4 (F)
Safety pressure: 1.5 times the maximum output pressure
Applicable temperature: 40℃~74℃(-40℉~165℉)
Internal leak rate: 2 x 10-8atm.cc/sec He
CV: 0.06
Weight: 0.9 kg (2.0 lbs)

Application of two stage water pressure regulating valve:

Gas Analysis Test
Laboratory
Petrochemical industry
Power Plant Equipment
