Description of the 4-20mA nitrogen gas mass flow meter:

4-20mA nitrogen gas mass flow meter are specially designed for small pipe flow monitoring and control. The series can measure gas flow in a pipe diameter as small as 3 mm,but not over 19 mm. With the self-flow conditioning feature of the MEMS sensor package, the 4-20mA nitrogen gas mass flow meter feature an extremely low pressure loss compared to the traditional by-pass thermal mass flow meters in this application scope. The accuracy of the 4-20mA nitrogen gas mass flow meter are generally ±(1.5+0.2FS)% or better depending on the requests. The 4-20mA nitrogen gas mass flow meter can work at an environment of -20 to 60 C and pressure up to 1.5 MPa.

Features of the 4-20mA nitrogen gas mass flow meter:

·Highly sensitive,measuring as low as 8mm/sec,and as 65m/sec with a single assembly
·Directly sense mass flow using thermal mass flow principle
·Propriety MEMS sensor package design for better reliability
·Standard 12~24VDC power supply
·Low pressure loss forreducing energy cost
·Industrial standard Modbus protocol for easy networking and remote control

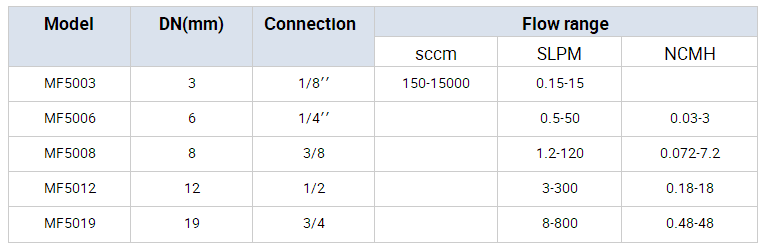

Specification of the 4-20mA nitrogen gas mass flow meter:

Application of the 4-20mA nitrogen gas mass flow meter:

Applications include semiconductor gas process monitoring and control, hospital oxygen gas monitoring, etc.

Detailed images of the 4-20mA nitrogen gas mass flow meter:
