| Brand Name : | Shelok |
| Model Number : | SLK-GDL |
| Price : | USD+240~480+piece |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100+piece+per month |
| Delivery Time : | 4-7 work days |

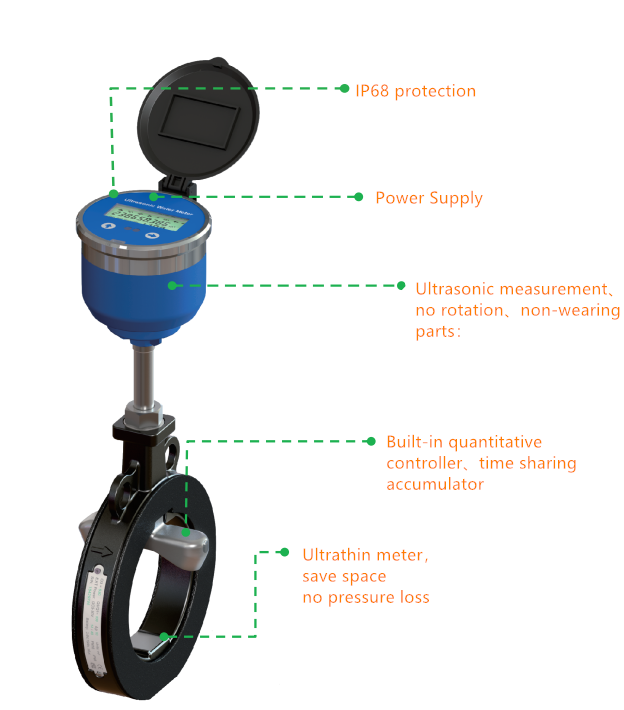

The agricultural irrigation ultrasonic water flow meter is designed
for agricultural irrigation, garden management and water resources
monitoring.The agricultural irrigation ultrasonic water flow meter
has the advantages of low cost, high measurement accuracy, low
power consumption as well as stable and reliable work performance.
The thickness of the agricultural irrigation ultrasonic water flow
meter is only 1 inch which can save the installation space. All the
parts` protection level is IP68, which can be used in all kinds of
bad working environment.The measuring result would not be affected
by water quality and there was no pressure loss.
| Accuracy | ±1% |
| Medium | water,sewage,sea water(can be customized for other liquid)and the pipe must be full |
| Medium temperature | 0.1~30℃ |
| Working environment | temperature:-30~45℃;humidity:≤100%(RH) |
| Pressure | 1.6MPa |
| Installation | clamp on |
| Audio output | mono channel |
| Straight pipe | upstream≥5D,downstream≥3D(D for pipe diameter),the pipe must be full |
| Pulse output | 2 isolated OCT/2 TTLpulse output |
| Analog output | 1 two-wire 4-20mA analog output |
| Digital communications | RS485/USART/Infrared |
| Protection grade | IP68,can work underwater(≤2m) |
| Display | double row,9 bit cumulant,4 transient flows,various status prompts |
| Data storage | use EEPROM/FLASH as data storage way,automatic record for 256 months,accumulated record for 512 days |
| Period | measurement:once per second;calibration status :four times per second |
| Power consumption | 0.5mV |
| Power Supply | built-in lithium battery(3.6V,9Ah)/external DC8-36V/two-wire system 4-20mA |
·Agricultural irrigation:Can monitor agricultural water usage
remotely to save water
·Industrial water metering
·Intelligent irrigation and landscaping

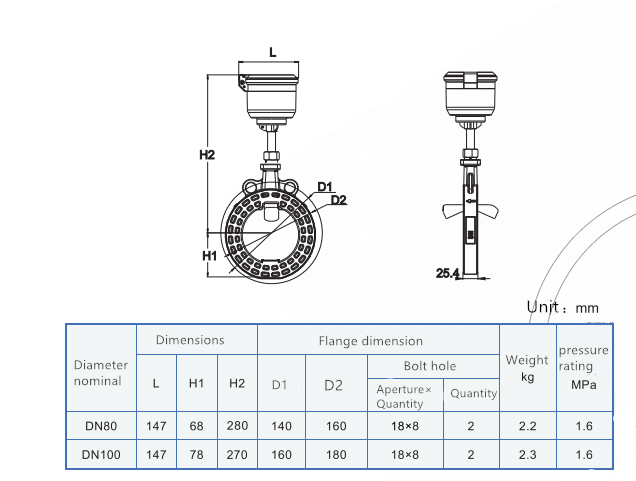

Dimensions of the card type agricultural irrigation ultrasonic water flow meter :
|
|
