Description of QGD electro pneumatic positioner pressure regulator pneumatic loading station:
The working principle of QGD electro pneumatic positioner is force-balance principle,when turn the knob,there will be different pressure on output terminal,and the pressure on the diaphragm will balance with the spring.
Specification of QGD electro pneumatic positioner pressure regulator pneumatic loading station:
| Model | Air source pressure | Output pressure | Weight | H | A | B | Connection |
| OGD-101-A | 140KPa(0.14MPa) | 0~60KPa | 0.45Kg | 115MM | 50MM | 50MM | M10*1Female thread |
| OGD-101 | 140KPa(0.14MPa) | 0~100KPa | 0.45Kg | 115MM | 50MM | 50MM | M10*1Female thread |
| OGD-100 | 140KPa(0.14MPa) | 0~100KPa | 0.45Kg | 180MM | 70MM | 70MM | M10*1Female thread |
| OGD-200 | 350KPa(0.35MPa) | 0~250KPa | 0.45Kg | 180MM | 70MM | 70MM | M10*1Female thread |
| OGD-300 | 500KPa(0.7MPa) | 0~350KPa | 0.45Kg | 180MM | 70MM | 70MM | M10*1Female thread |
| OGD-500 | 1000KPa(1.0MPa) | 10~500KPa | 0.5Kg | 110MM | 53MM | 53MM | 1/4NPTFemale thread |
| OGD-800 | 1000KPa(1.0MPa) | 10~800KPa | 0.5Kg | 110MM | 53MM | 53MM | 1/4NPTFemale thread |
Applications of QGD electro pneumatic positioner pressure regulator pneumatic loading station:
QGD electro pneumatic positioner is actually pressure regulator and stabilizer.It can be used for automatic pneumatic devices in laboratory to set pressure accurately and adjust the tension.

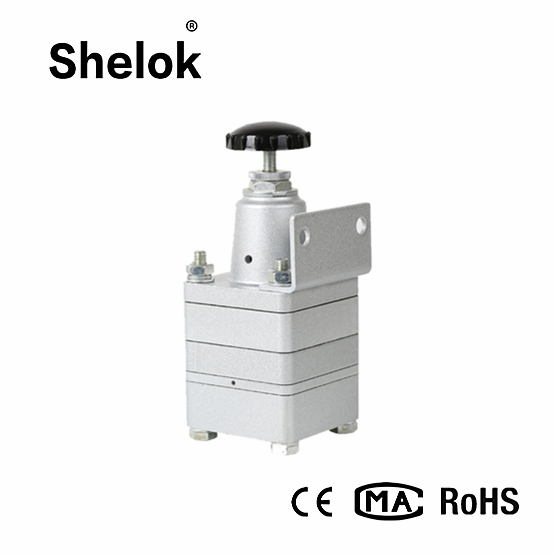

Detailed Images of QGD electro pneumatic positioner pressure regulator pneumatic loading station:
|
|
