Dedicate to standard instruments.
7 Years
| Ask Lasest Price | |
| Brand Name : | Shelok |
| Certification : | CE |
| Price : | USD+54~64+piece |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100+pieces+per month |
| Delivery Time : | 3-15 work days |
Description of ceramic piezoresistive capacitive diaphragm 0-5v low cost oil car pressure sensor
SLK-CPS series pressure transmitter Integration with a piezoresistive ceramic pressure sensor, signal processing circuit imported from Germany dedicated chip, signal conditioning circuit reliability, redundancy and thermal design to ensure product reliability and consistency. Cycle fatigue pressures up to 10 million times.
Features of ceramic piezoresistive capacitive diaphragm 0-5v low cost oil car pressure sensor
* using integrated piezoresistive ceramic pressure sensor
* signal processing circuit ASIC imported from Germany
* signal conditioning circuit reliability redundant design and thermal design
* cycle fatigue pressures up to 10 million times
Specification of ceramic piezoresistive capacitive diaphragm 0-5v low cost oil car pressure sensor
| Ceramic Micro Liquid High Temperature Pressure Sensors | |
| Pressure Range | 0~1bar 0~60bar |
| Accuracy | 0.5%FS;1%FS;1.5%FS |
| Nonlinear | 0.02%FS |
| Reliability | 0.05%FS |
| Output Signal | 0~5V, 0.5~4.5V, 1~5V, 4~20mA |
| Supply Voltage | 5V DC, 24(12~36V)DC |
| Operating Temperature | -40℃~125℃ |
| Compensated Temperature | -10℃~70℃ |
| Overload | 150%FS |
| Dielectric Material | 316SS |
| Electrical Connection | 3 Pin Packard Connector |
| Pressure Connection | 1/4NPT, 1/8-27NPT, 7/16-20UNF Custom |
Applications of ceramic piezoresistive capacitive diaphragm 0-5v low cost oil car pressure sensor
* Automotive Oil Pressure
* Car brake pressure
* Motorized off-road equipment and industrial machinery

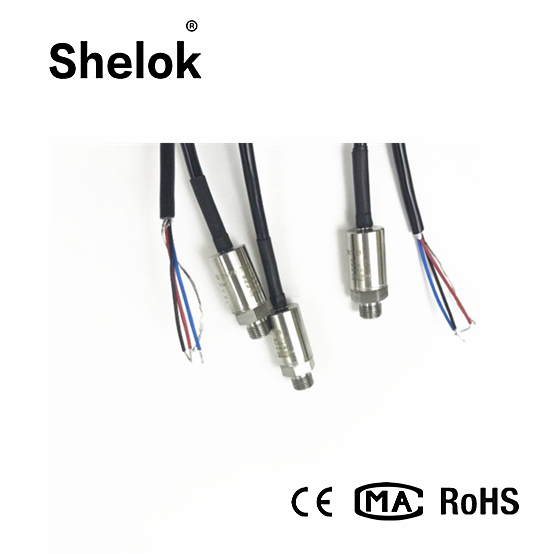

Detailed Images
|
|
