Dedicate to standard instruments.
7 Years
| Ask Lasest Price | |
| Brand Name : | Shelok |
| Model Number : | SLK-34T |
| Price : | USD+45~60+piece |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100+Pieces+per Month |
| Delivery Time : | 1 - 10 work days |

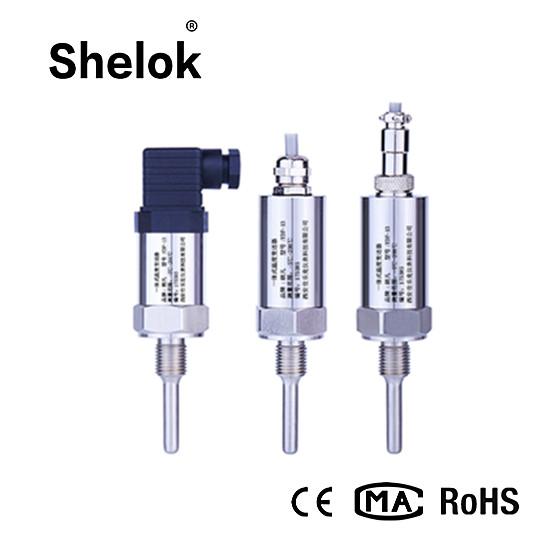

PT100 Temperature transmitter adopt special temperature module, can output standard analog signal and do linear correction to all kinds of thermocouple and thermal resistance. With the characteristic of high accuracy, good stability, strong anti interference ability, waterproof, explosion-proof, heat resistance, seismic.
Name | PT100 water air temperature transmitter sensor 0-10v |
Range | -50-300 ℃ |
Power supply | 12-36VDC |
Output | 4-20mA, 0-5V, 0-10V, 1-5V, 0-5V |
Overload | 1.5 times |
Probe Material | stainless steel 304 |
Seal | Fluorine rubber seal non-internal seal |
Thread optional | M20*1.5,G1/2,G1/4,NPT1/2,NPT/4,M14*1.5 |
Accuracy class | ± 0.5 ℃ |
Protection | IP65 or IP67 High magnetic compatibility |
Stability | ± 0.1% FS / Year |
Warranty | 12 months |
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference
ability
Wiring reverse and overvoltage protection, current limiting
protection
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene.
|
|
