| Brand Name : | Shelok |
| Model Number : | SLK-341 |
| Price : | USD+197~258+Piece |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100+pieces+per month |
| Delivery Time : | 5-8 work days |

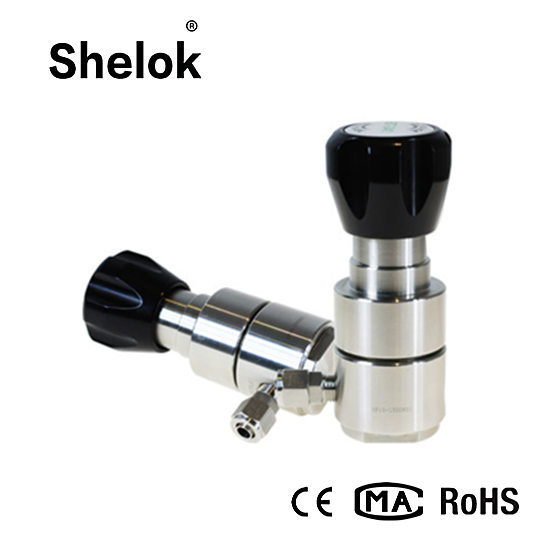

The precision pressure reducer can be used to precisely control the
pressure to provide a stable gas source for other equipment. The
pressure reducing valve produced by our company adopts a unipolar
decompression structure, and the output pressure is stable and the
response sensitivity is high. The mother body and the diaphragm are
in a hard seal form, and the inlet and outlet threads can be
customized according to customer requirements. The filter is
built-in and can be installed in panel or wall.
Applicationof Needle pneumatic gas pressure regulator valve air
oxygen nitrogen brass pressure reducing valve co2:
Laboratory, gas purging system, other working conditions with corrosiveness;
Special gas, gas bus, test equipment
Specification of of Needle pneumatic gas pressure regulator valve
pressure reducing valve | |||
Maximum input pressure | 6000psi | Output pressure | 0-3000psi |
Working temperature | -40 ~165 deg F (-40 +74 deg C) | Valve seat material | PTFE,PCTFE,Vespel |
Leakage rate | 2*10atm cc/sec He | Body material | 316L,brass |
Flow capacity | Cv =0.06,0.08,1.1,1.8 | Diagram material | 316L,Hastelloy |
Filter screen material | 316L | Spring material | 316L |
|
|
