| Brand Name : | Shelok |
| Certification : | CE |
| Price : | USD+69~96+piece |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100+pieces+per month |
| Delivery Time : | 3-15 work days |

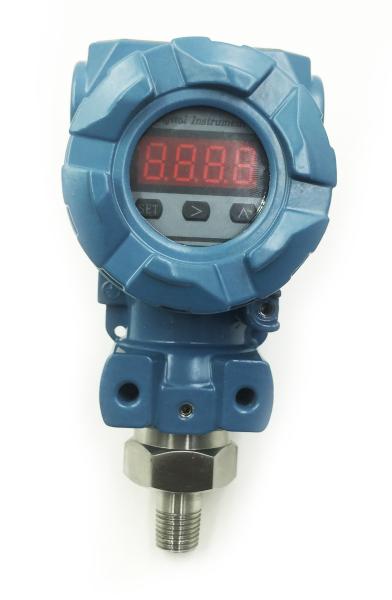

Capacitive pressure transmitter is suitable for measuring flow, liquid level and pressure (differential pressure,gauge pressure and absolute pressure) The GP3151 series smart pressure transmitter is mirco processor-based pressure-sensing instrument, it have high performance and reliability with the flexibility of digital electronics.
Super performance, use to measure pressure, differential
pressure,liquid level, rate of flow.
Accuracy: ±0.075%~±0.1%F.S
Stability: ±0.25%
Standard 4～20mA,RS-485 communication interface
Support upgrade of basic scene control technique
For 316L stainless steel non-corrosive gas, liquid pressure
measurement. Used in petroleum,
chemical, metallurgy, electric power, hydrological and other
industrial process field, Shipbuilding
and aviation industries. Hydraulic and pneumatic control systems
Name | China 2088 absolute pressure transmitter price |
Pressure | 0-100Kpa....100MPa gauge pressure |
Power supply | 12-36VDC |
Output | Analog output: two –wire 4-20mADC/ hart protocol |
Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart
transmitters Max. |
Display | 4 digital display,5 digit LCD display, pointer type. |
Explosion-proof | ExiaIICT5;explosion suppression type |
Zero offset | Can positive transfer or negative transfer, but can not overstep
the utmost value |
Medium temperature | -40～104℃ |
Static pressure | 3.45KPa(absolute pressure)～31.2MPa(gauge pressure) |
Relative humidity | 5～98%RH |
Run-up time | less than 5 sec. |
Capability change | Less than 0.16cm3 |
Damp adjust | 0.20～25 second |
Malfunction alarming | If occur malfunction, automatism diagnose function will output 3.9
or 21.0mA |
Configuration protection | To avoid the datas are modified random, can utilize software or
protect switch lock the record data |
Accuracy | ±0.075～±0.1% |
Tem. influence | ±(0.05%URL＋0.15%FS＋200Pa)20℃ |
Static pressure influence | zero error 0.1URL/6.9Mpa; Zero error 0.1URL/1.7MPa |
Stability | ±0.1%URL/year |
Vibration influence | withstand frequency 200Hz at any direction, arouse error ±0.05%URL |
|
|
