| Brand Name : | Shelok |
| Model Number : | CHBX |
| Price : | USD+15-55 + Pieces |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram and other terms |
| Supply Ability : | 100+pieces+per month |
| Delivery Time : | 15 working days |

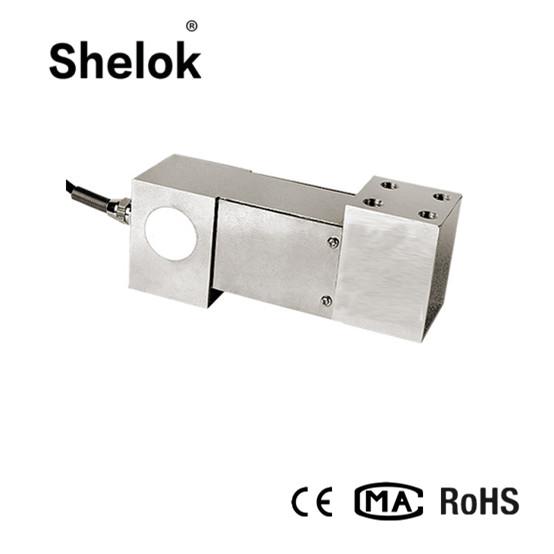

Description of high precision chinese bending beam load cell 100kg 150kg 200kg
The load sensor elastomer adopts a curved cantilever beam structure, one end is fixed, one end is stressed, and the structural strength is good, and can be used for carrying and measuring various tensile and compressive forces.
Features of high precision chinese bending beam load cell 100kg 150kg 200kg
High precision
Stable and reliable performance
Easy to install and use
Specification of high precision chinese bending beam load cell 100kg 150kg 200kg
| Sensitivity | 1.5/2.0±0.002mv/v | Operating temperature | -20 ~ 70℃ |
| Rnage | 100kg,150kg,200kg | Input resistance | 380±30Ω |
| Total error | ±0.05%F.S | Output resistance | 350±5Ω |
| Ultimate overload | 300%F.S | Safe overload | 150%F.S |
| Creep | ±0.05%F.S | Zero balance | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10~12V |
| Zero temperature coefficient | ±0.05%F.S/10℃ | Ingress protection | IP68 |
| Max excitation voltage | 15V | Output temperature effect | ±0.05%F.S/10℃ |
| Material | Alloy Steel/Stainless Steel | Cable | length:2m;diameter:φ5.2mm |
Drawings of high precision chinese bending beam load cell 100kg 150kg 200kg
Applications of high precision chinese bending beam load cell 100kg 150kg 200kg
It is applicable to industrial automatic measurement and control systems for various force measurement and weighing such as electronic scales and weighing instruments.
|
|
