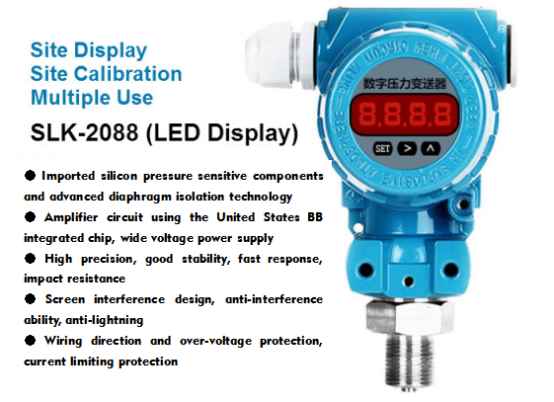

SLK -2088 pressure transmitter for gage application
Technical Data
| Measurement Range | -0.1….0~0.01...~100MPa |
| Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
| Pressure type | Gage, Absolute, Sealed gauge |
| Accuracy | ±0.25% (Typical) ±0.5%(Max.) |
| Long term stability | ±0.2%F.S/year |
| Operating Temperature Range | -20~80°C |
| Storage Temperature Range | -40~120°C |
| Power supply | 15~30VDC |
| Output signal | 4~20mA 0~10/20mA 0/1~5VDC |
| Pressure port | M20×1.5 or customize |
| Material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O-ring | Fluororubber |
| Electrical housing | Cast aluminum alloy (2088housing) |
| Insulation resistance | 100MΩ, 100VDC |
| Protection | IP65 |
Ordering Information
| 2088 GP | Pressure Transmitter for Gage application | |||||||
| Pressure Range | 500Pa~ 100MPa | |||||||
| Code | Power supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Others | |||||||
| Code | Output signal | |||||||
| S1 | 4~20mA DC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Port | |||||||
| J1 | M20×1.5 male | |||||||
| J2 | G1/2 male | |||||||
| J3 | G1/4 male | |||||||
| J4 | 7/16-20UNF Female | |||||||
| J5 | Others (such as Φ 50.4mm flange) | |||||||
| Code | Electrical connection | |||||||
| B1 | Big Din | |||||||
| B2 | PG7 PIN | |||||||
| B3 | Cable with 1.5 meter | |||||||
| B4 | 2088 industry housing | |||||||
| B5 | 2088 housing with LED | |||||||
| B6 | others | |||||||
| Typical model number: 2088 GP 0~100MPa D1 S1 J1 B3 | ||||||||
External Dimension
Product details
|
|
