| Brand Name : | Shelok |
| Model Number : | YK-100 |
| Certification : | CE |
| Price : | USD+102-198+Piece |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 100+pieces+per month |
| Delivery Time : | 5-8 work days |
Description of ammonia fuel steam digital pressure gauge manometer
SLK-100 Series Intelligent Pressure Gauges have full electronic structure and use battery-powered, so they are very easy for on-site installation. Specifically, front-end high-precision piezoresistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drift amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after computing and processing the actual pressure value is showed on the LCD display.
Features of ammonia fuel steam digital pressure gauge manometer
Large-screen LCD display, high resolution, ignoring the error.
Peak Hold function, record the maximum pressure values during the
measurement
Pressure on the percentage of dynamic display, (the progress bar
display)
Choice of five engineering units: psi, bar, kpa, kg / cM2 Mpa
Choose 0 ~ 15min auto-off feature.
Micro-power consumption, work more than 2 years in power-saving
mode, 2,000 hours continuous work.
Parameter correction, correct zero and error in field application.
Limit the upper and lower range
Sampling rate: 4 times / sec
Specification of ammonia fuel steam digital pressure gauge manometer
| Scale Range | -0.1~0~250MPa | Accuracy | 0.4%, 0.2%,0.5%,0.25% |
| Overload capacity | 200% | Pressure Type | Gauge,Absolute Pressure |
| Stability | ≤0.1%/year | Battery voltage | High energy lithium battery or rechargeable battery |
| Display | LCD,5characters | Display range | -19999~99999 |
| Ambient temperature | -20°C~70°C | Relative humidity | ≤80% |
| Connection size | M20x1.5 Male | Pressure unit | MPa/KPa/Bar/Psi/mBar |
| Case material | SS | Medium temp | -10~80°C |

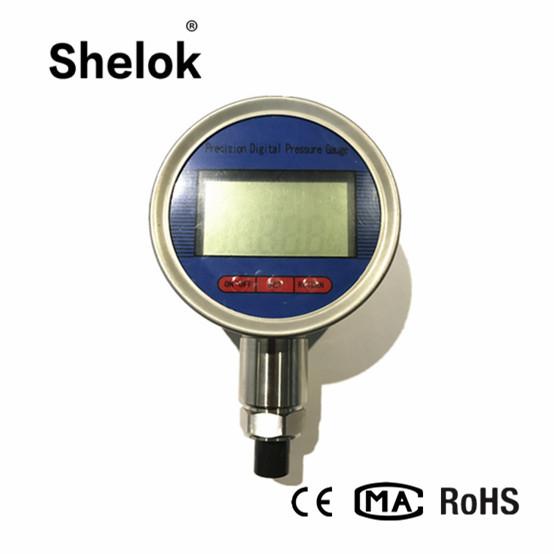

Detailed Images of ammonia fuel steam digital pressure gauge manometer
Applications of ammonia fuel steam digital pressure gauge manometer
Used to petroleum, chemical industry, power plant, water supply of town, Horologic exploration fields.
|
|
