Description of 4-20ma output liquid digital electromagnetic flow meter battery

Intelligent electromagnetic flow meter consists of two parts, the sensor and converter. It is based on the work of Faraday's law of electromagnetic induction, used to measure the conductivity is greater than 5μS / cm conductive liquid volumetric flow rate, is a measure of the volume flow of conductive medium for induction meter. In addition to measure the volume flow of conductive liquid, it can also be used to measure the volume of a homogeneous liquid-solid two-phase flow of a liquid suspension of acid and alkali and other strong corrosive liquids and slurries, pulp and paper pulp. Widely used in flow measurement of petroleum, chemical, metallurgy, textile, paper, environmental protection, food and other industrial and municipal administration, water conservancy construction, river dredging and other fields.

Features of 4-20ma output liquid digital electromagnetic flow meter battery

Fully digital processing, anti-interference ability, reliable measurement, high accuracy flow measurement range up to 1500: 1
Ultra-Low EMI switching power supply for supply voltage variation range, anti-EMI performance.
16-bit embedded microprocessors, computing speed, high precision, programmable low-frequency square wave excitation frequency and improve the stability of the flow measurement, low power consumption.
Using SMD devices and surface mount (SMT) technology, circuit reliability.
No moving parts inside the pipe l, unimpeded flow of parts, measuring almost no additional pressure loss.
Range in the field can be modified online according to the actual needs,measurements and velocity distribution, the physical parameters of the fluid pressure, temperature, density, viscosity and the like.
High-resolution backlit LCD display, full Chinese menu, easy to use, simple to operate, easy to understand.
RS485, RS232, Hart, and Modbus and other digital communication signal output. (Optional)

Specification of 4-20ma output liquid digital electromagnetic flow meter battery

Flow range of 4-20ma output liquid digital electromagnetic flow meter battery

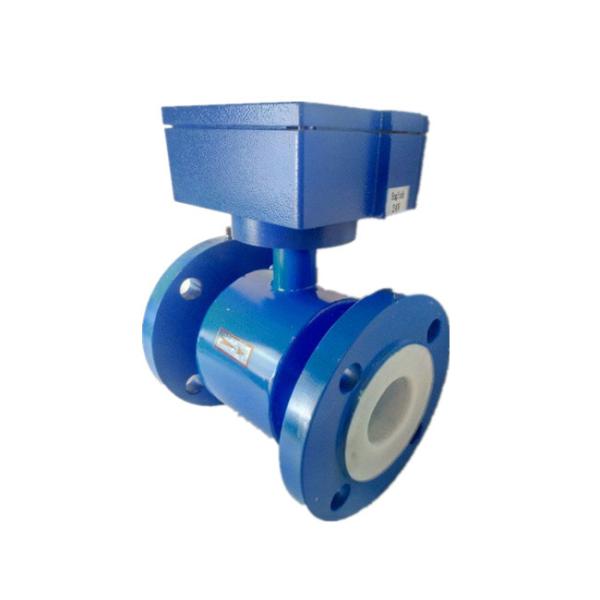

Detailed images of 4-20ma output liquid digital electromagnetic flow meter battery
