| Brand Name : | Shelok |
| Model Number : | SLK-YC19 |
| Certification : | CE |
| Price : | USD12-18 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability : | 100+piece+per month |
| Delivery Time : | 5-10working days |
Description of 19mm piezoresistive silicon pressure sensor mat
YC19 is piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability.

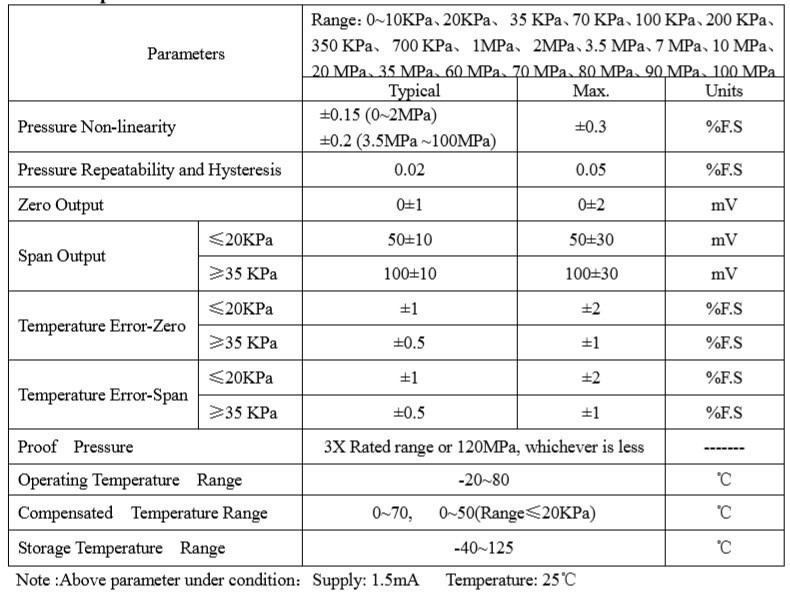

Specification of 19mm piezoresistive silicon pressure sensor mat
Electrical Data
Supply:1.5mADC
Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ
Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical
connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
Detailed Images of 19mm piezoresistive silicon pressure sensor mat
Applications of 19mm piezoresistive silicon pressure sensor mat
Measurement pressure of gas and liquid
Petroleum exploitation
Water supply,warm supply of town
Process control system
Aviation and navigation inspection
Hydraulic pressure
Features
Wide measurement range:0~10KPa~100Mpa
Piezoresistive silicon sensing element
Full316LSS,Full Titanium or Hastelloy diaphragm
O-ring mount
High Accuracy and stability
|
|
