| Brand Name : | Shelok |
| Model Number : | SLK -YD32 |
| Certification : | CE |
| Price : | USD45-81 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability : | 100+piece+per month |
| Delivery Time : | 5-10working days |

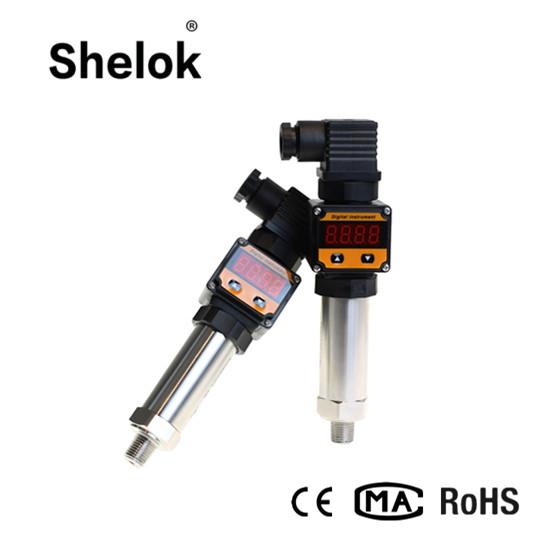

Description of LCD display smart water air digital pressure transmitter
Applications of LCD display smart water air digital pressure transmitter
Widely used for weak corrosive liquid and gas pressure measurement .
Specification of LCD display smart water air digital pressure transmitter
Selection Guide of LCD display smart water air digital pressure transmitter
| SLK-YD32 | |||||||
| Pressure range | -0.1...0~0.01...100MPa | ||||||
| (0-X)KP Or MPa | X: Measurement range | ||||||
| Code | Power supply | ||||||
| D1 | 24VDC | ||||||
| D2 | 5VDC | ||||||
| D3 | Others | ||||||
| Code | Output signal | ||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||
| S4 | 0~10mADC | ||||||
| Code | Pressure Port | ||||||
| J1 | M20×1.5 male | ||||||
| J2 | G1/2 male | ||||||
| J3 | G1/4 male | ||||||
| J4 | 7/16-20UNF Female | ||||||
| J5 | Others(eg: OD 50.4mm flange) | ||||||
| Code | Electrical connection | ||||||
| B1 | Big Din | ||||||
| B2 | PG7 PIN | ||||||
| B3 | Cable with 1.5 meter | ||||||
| B4 | 2088 industry housing | ||||||
| B5 | 2088 housing with LED | ||||||
| B6 | others | ||||||
| Code | Pressure type | ||||||
| G | Gauge | ||||||
| A | Absolute pressure | ||||||
| S | Sealed pressure | ||||||
Note:
1. Media must compatible with wetted part.
2.To ensure the products can working reliable, we suggest that
customer install lightning protection device and make sure products
& power are earthed.
3. Special requirement ,such as strong shock, moment vibration, strong
electromagnetism, radio frequency interference,please consult us.
External Dimension
Electrical connection diagram

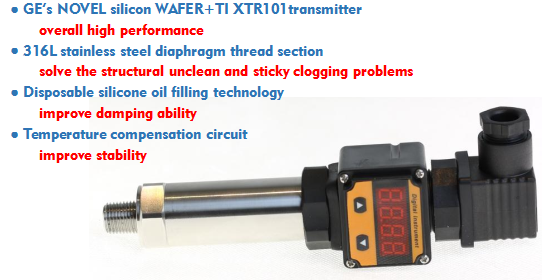

Detailed Images of LCD display smart water air digital pressure transmitter
|
|
