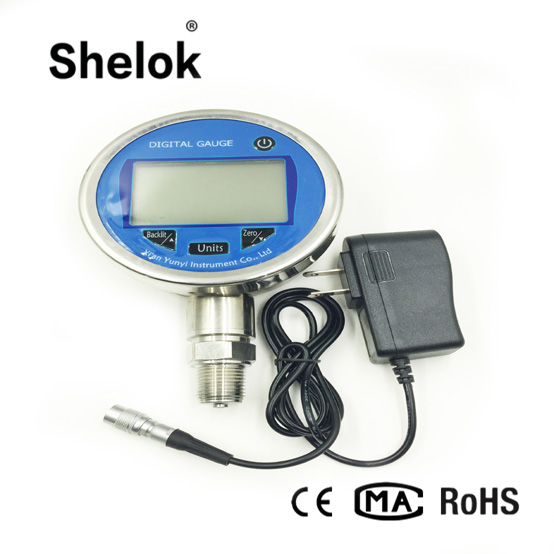

Battery Powered Oil, Water Pressure Gauge Digital
Description
SLK-100 digital pressure gauge uses high-quality pressure sensor core, with high precision, corrosion resistance, shock resistance, anti-vibration, small drift, good stability and other advantages; use of low-power microprocessor delay battery life, no external power supply, Convenience. Can be used for gauge pressure, absolute pressure, differential pressure detection, the variety of forms, sub-ordinary type and explosion-proof type, diaphragm type; to meet the needs of a variety of measurements. It fundamentally overcome theshortcomings of low accuracy, poor reliability, high damage rate, etc., especially in the corrosion, vibration sites, even more remarkableperformance.
Detailed Images
Specification
| Battery Powered Oil, Water Pressure Gauge Digital | |
| Measuring range | -0.1 ~ 60MPa |
| Accuracy class | 0.1% FS 0.2% FS 0.5% FS |
| Display | 5-digit dynamic display |
| Power supply | 3.6V lithium battery |
| Medium temperature | -20 ~ 80 ℃ |
| Working environment temperature | -10 ~ 60 ℃ |
| Work environment humidity | ≤ 80% RH |
| Conventional thread interface | M20 * 1.5 (other thread ordering instructions) |
| Application | Test Pressure and Calibrate common pressure gauge |
| Product Keywords | Digital Pressure Gauge, Measuring Instruments |
Features
1.Large screen: large-screen LCD display, intuitive and clear
readings
2.High-precision:advanced microprocessor technology, import control
chip processing, stable performance
3.Low power consumption: ultra-low power intelligent control
4. Anti-corrosion, resistant to moisture
5. Easy to measure negative pressure, positive and negative
pressure, positive pressure
6. Built-in battery without external power supply
7. Percentage progress bar reads more accurately
Applications
1. Check the general pressure gauge
2. Check the precision pressure gauge
3. Check sphygmomanometer, other pressure meter
4. Measuring precision pressure
Selection Guide
| SLK-100 | Code | Accuracy | ||
| A | 0.05 | |||
| B | 0.1 | |||
| C | 0.2 | |||
| D | Flange | |||
| E | Special Accuracy | |||
| Code | Connection mode | |||
| 1 | M20*1.5 | |||
| 2 | 1/2NPT | |||
| 3 | M14*1.5 | |||
| 4 | G1/2 | |||
| 5 | Special connector | |||
| Code | Pressure type | |||
| G | Gage pressure | |||
| D | Differential pressure | |||
| A | Absolute pressure | |||
| SLK-100 | A | 1 | G | |
