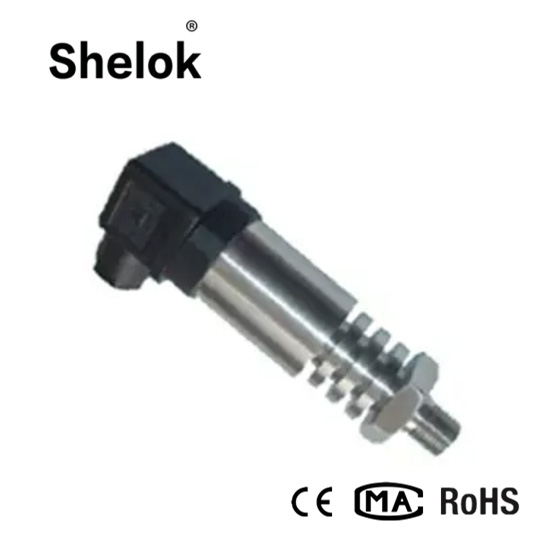

Liquid High Temperature Industrial Pressure Sensors
Description Liquid High Temperature Industrial Pressure Sensors
pressure transmitter use Sputtered film technogy to test liquid and
air pressure .
The pressure transmitter is fully welded with intrinsic safety and
explosive-proof futures, so can by applied in harsh industrial
environments and high temperature environments like 0 °c - 150
°c~200°c
Detailed Images Liquid High Temperature Industrial Pressure Sensors
Specification Liquid High Temperature Industrial Pressure Sensors
| Liquid High Temperature Industrial Pressure Sensors | |
| Pressure Range | 0~0.1bar to 0~100bar |
| Overload | 1.5 times of full range |
| Accuracy | 0.25%FS,0.5%FS |
| Power Supply | 24V DC |
| Output | 4~20mA,0~10mA,1~5VDC,0~10VDC,0~5VDC |
| Compensation temperature | 0~50°C,-10~80°C |
| Medium temperature | -60~200°C |
| Working temperature | -30~85°C |
| Storage temperature | -40~125°C |
| Temperature influence | 0.02%FS/°C |
| Electric Connection | DIN (can be customized) |
| Protection grade | IP65,IP67 |
| Connection | M20*1.5 male (can be customized) |
| Anti vibration | 20g,20-5000HZ |
| Impact resistance | 100g,11ms |
| Case material | SUS304 |
Applications Liquid High Temperature Industrial Pressure Sensors
